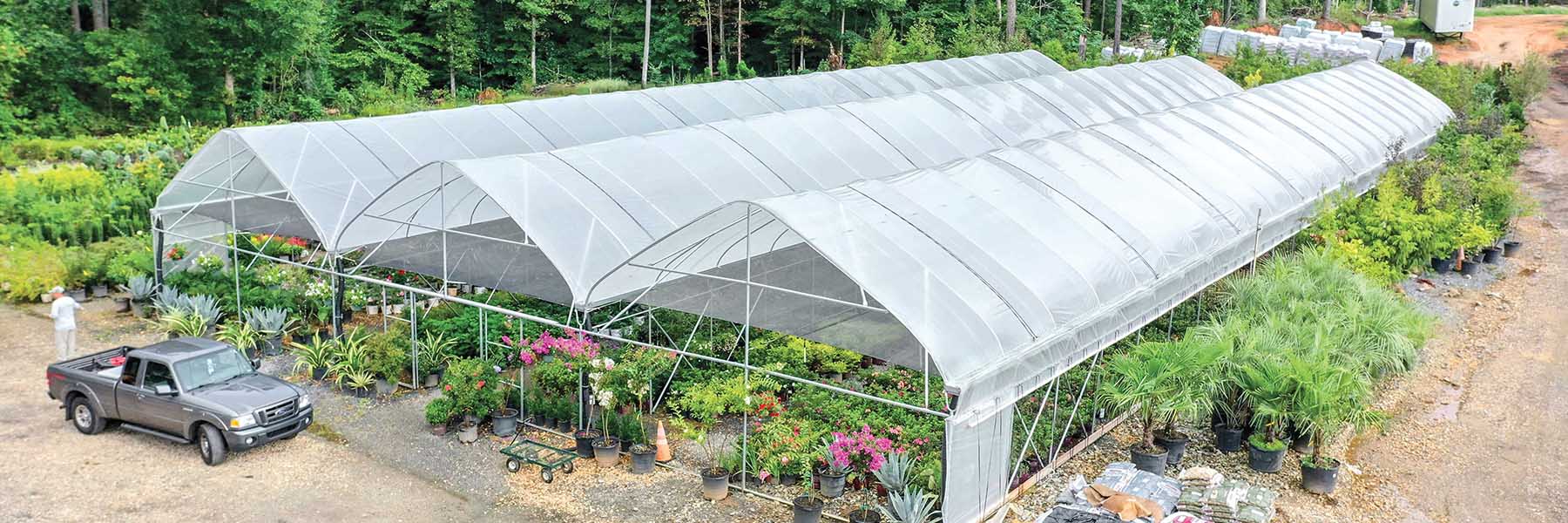

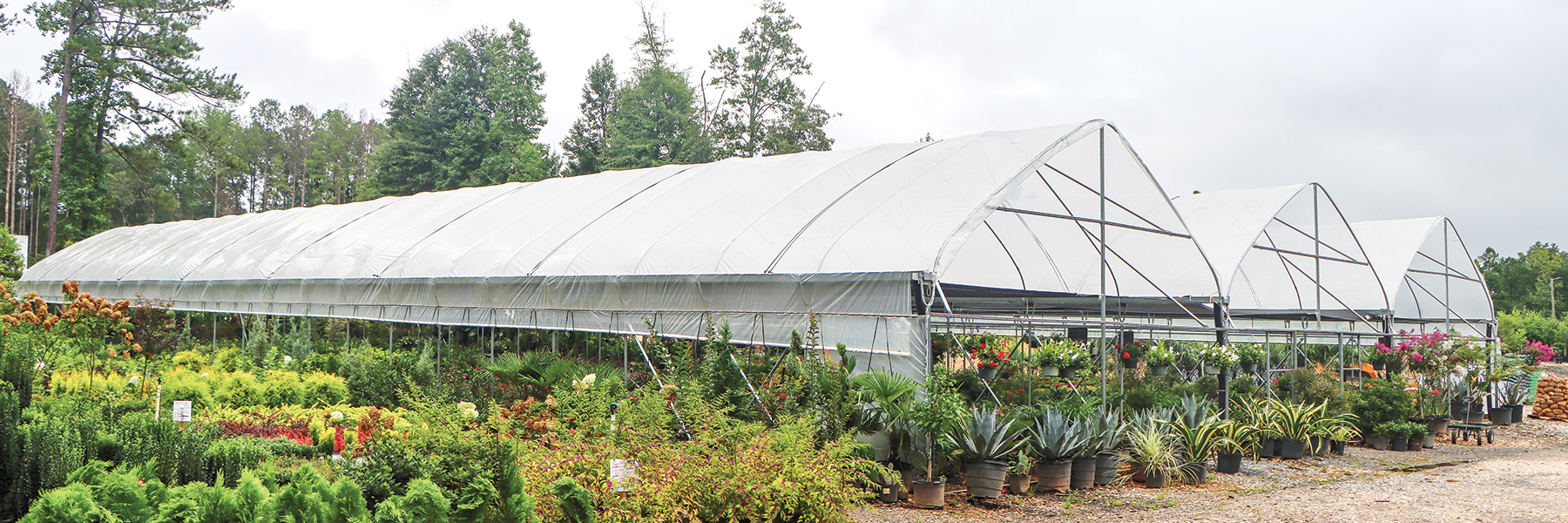

GrowSpan Gothic Style Multi-Bay Tunnels Provide Growers With An Expansive, Customizable Growing Space At The Best Price.
With this cost-effective structure, maximizing available growing area is simple. The Gothic Style Multi-Bay Tunnel allows growers to take advantage of all the traditional high tunnel benefits, including economical season extension and reliable crop protection, but on a larger scale than ever before.
These high tunnels feature a convenient gutter-connect design and can be customized to any width or length. This means operations of all sizes are able to make the most of their usable space, while also creating a versatile growing environment that’s ideal for producing a wide variety of field-grown crops and berries.
Gothic Style Multi-Bay Tunnels employ a poly film cover to promote exceptional light transmission and shield crops from inclement weather. Ventilation is also simplified with outer sidewalls that include manual roll-ups and insect netting, so growers can quickly control air movement, without exposing their crops to harmful pests.
The GrowSpan Gothic Style Multi-Bay Tunnel Advantage Includes:
- The improved high tunnel design enables growers to create their ideal growing space on any scale and at an unrivaled price point.
- Bay widths come in multiples of 24’ and bay lengths come in multiples of 12’. Each bay includes 3 purlins and 6’ rafter spacing.
- Rafters are manufactured from 1.315” OD 14-gauge structural steel tubing. Rafter legs are manufactured from 1.90” OD 14-gauge structural steel tubing.
- Gothic Style Multi-Bay Tunnels are covered with 6 mil 4 year single layer film that offers excellent light transmission and durability.
- Outer sidewalls are designed with manual roll-ups to allow for quick and easy ventilation. Included insect netting protects crops against pests.
- End walls can be customized and equipped with 6’W x 6’6”H sliding doors, allowing growers to choose their access points.
- High tunnels come complete with numerous wind-resistant features, including curtain baffles and a rope that installs in a zig zag pattern over each bay.
- Ground posts are made from 1.66” OD 10-gauge steel and provide exceptional support. For increased wind protection, these posts can be set in concrete.
To find out more about how the GrowSpan Gothic Style Multi-Bay Tunnel can improve your operation, call or Request a Quote today.
